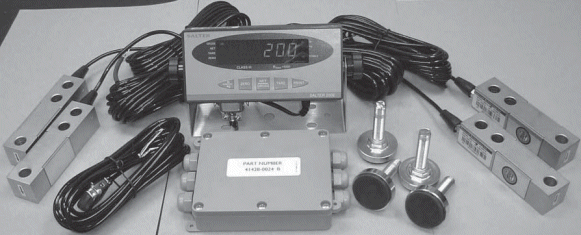

Build Your own Floor Scale Kit

Includes the following:

(1) 200E Indicator - 0.6” LED display. ABS NEMA 12
enclosures, 115 VAC, NTEP certified at 5000 divisions
Class lll, RS-232. Stainless steel swivel stand.

(1) Interface Cable - 15’ long with a 14 pin Centronics
connector. 4 wire with braided shielding. 0.2” diameter
cable, 24AWG stranded wire.

(1) Junction Box - 4 channel signal trim, ABS NEMA
12 enclosure, mounting tabs on base of enclosure,
sealing tabs on cover.

(1) Summing Board - 4 channel signal trim, springloaded
wire release levers, conformal coated, 4 corner balance pots.

(4) Load Cells - Nickel-plated alloy steel,
3.0mV/V rated output, NTEP certified at 5000 divisions
Class lll, 20” cable length.

(4) Leveling Feet - Stainless steel
construction with molded rubber insert. 1.75”
diameter, 2.82” total length, 2” long 1/2-20 threads.

Brochure



Build your own floor scale! Do not weld with the load cells installed.



P/N 56979-0017 5KCapacity Floor Scale Kit
P/N 56980-0014 10K Capacity Floor Scale Kit
