T Strip Rubber Molding for Truck Scales by the foot or by the roll are in the Central Carolina Scale Electronic Catalog

Pit T- Strip Extruded Rubber Molding

Standard Features
• Designed for use in truck scale applications to prevent spill-over into the pit
• Impact, tear, and weather-resistant SBR rubber
• Available by the foot or in 10.0 ft (3.1 m), 11.0 ft (3.4 m), 70.0 ft (21.34 m), 80.0 ft (24.4 m) and 100.0 ft (30.5 m) lengths. Maximum continuous length is 100.0 ft (30.5 m)
• Web thickness .25" (6.4 mm)

DIMENSIONS - INCHES (MM)
PART # .... H ................. W ......... W1 .................LENGTH
18736 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) .... Sold by the foot ................
18776 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) ....... 10 ft (3.05m) ...................
18797 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) ....... 11 ft (3.35m) ...................
18798 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) ....... 70 ft (21.34m) .................
33223 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) ....... 80 ft (24.4m) .................
33224 ..... 2.00 (50.8) ..4.50 (114.3) 0.25 (6.4) ....... 100 ft (30.5m) .................

rubber molding t strip

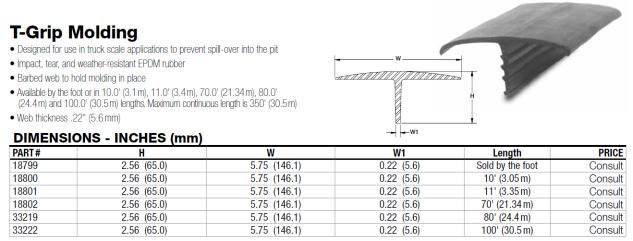

T-Grip Molding

T-Grip molding

Standard Features
• Designed for use in truck scale applications to prevent spill-over into the pit
• EPDM rubber is resistant to impact, tears and weather
• Barbed web to hold molding in place
• Available by the foot or in 10.0 ft (3.1 m), 11.0 ft (3.4 m), 70.0 ft (21.34 m),
80.0 ft (24.4 m) and 100.0 ft (30.5 m) lengths. Maximum continuous length
is 100.0 ft (30.5 m)
• Web thickness .22" (5.6 mm)

DIMENSIONS - INCHES (MM)
PART # ....... H ..................W ............... W1 ............. LENGTH
18799 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) .... Sold by the foot ........
18800 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) ..... 10 ft (3.05m) ............
18801 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) ..... 11 ft (3.35m) ............
18802 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) ..... 70 ft (21.34m) ..........
33219 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) ..... 80 ft (24.4m) ..........
33222 .... 2.56 (65.0) ..... 5.75 (146.1) .... 0.22 (5.6) ..... 100 ft (30.5m) ..........
