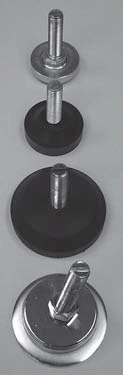

Floor Scale Replacement Feet

Bench Scale Feet

35128 Rubber pad 1/4-20 NC threads
19141 Stainless steel 3/8-16 threads

Polyurethane Rubber Leveling Feet all with 1/2-20 UNF SS stud

PART # ....... Foot Diameter INCHES ........ Height INCHES ........................
74585 ........................1.87 .................................3" .................................
74586 ........................2.00 .................................3" .................................
74587 ........................2.50 .................................3"..................................
73801 ........................3.00 .................................3" .................................

SUREFOOT Replacement foot, adapts to most floor scales• Use with single-ended beams to provide large, flat, adjustable introduction surface• Special neoprene rubber sandwich base gives high accuracy, linearity and repeatability

PART # ...... THREAD SIZE ..............DIAMETER IN (MM) ............... HEIGHT IN (MM)
18756 ................1/2-20 UNF (SST) ........................2.62 (66.5) .................3.47 (88.1)
39021 .................3/4-16 UNF-28 ............................3.25 (82.3) .................4.00 (101.6)

Stainless Steel Captured Ball Floor Scale Leveling Feet

Provides outstanding accuracy, repeatability, and performance Active ball suspension provides optimum load cell performance Hardened stainless steel material, welded, with polished finish Includes two stainless steel jam nuts, one for wrench access Top of stud is machined undersized 10% for easy
alignment into load cell, slotted for top-access applications

PART # ... DIAMETER INCHES (MM) ... THREAD SIZE ... HEIGHT INCHES (MM)
74572 ...........1.87 (47.5) ..............1/2-20 UNF .................3.5 (88.9)
74573 ...........2.00 (50.8) ..............1/2-20 UNF .................3.5 (88.9)
73800 ...........2.50 (63.5) ..............1/2-20 UNF .................3.5 (88.9)
74574 ...........3.00 (76.2) ..............1/2-20 UNF .................3.5 (88.9)
74575 ...........3.00 (76.2) ..............3/4-16 UNF .................4.5 (114.3)
74576 ...........3.00 (76.2) ..............1-12 UNF ....................4.5 (114.3)
74577 ...........3.00 (76.2) ..............1-14 UNF ....................4.5 (114.3)

Forged Eyebolts For Tension Load Cell Applications

Also available --

Floor Scale Kit--Build your own floor scale!

4 load cells, feet, junction box, board, & cable
